Offset Printing Blanket Structure

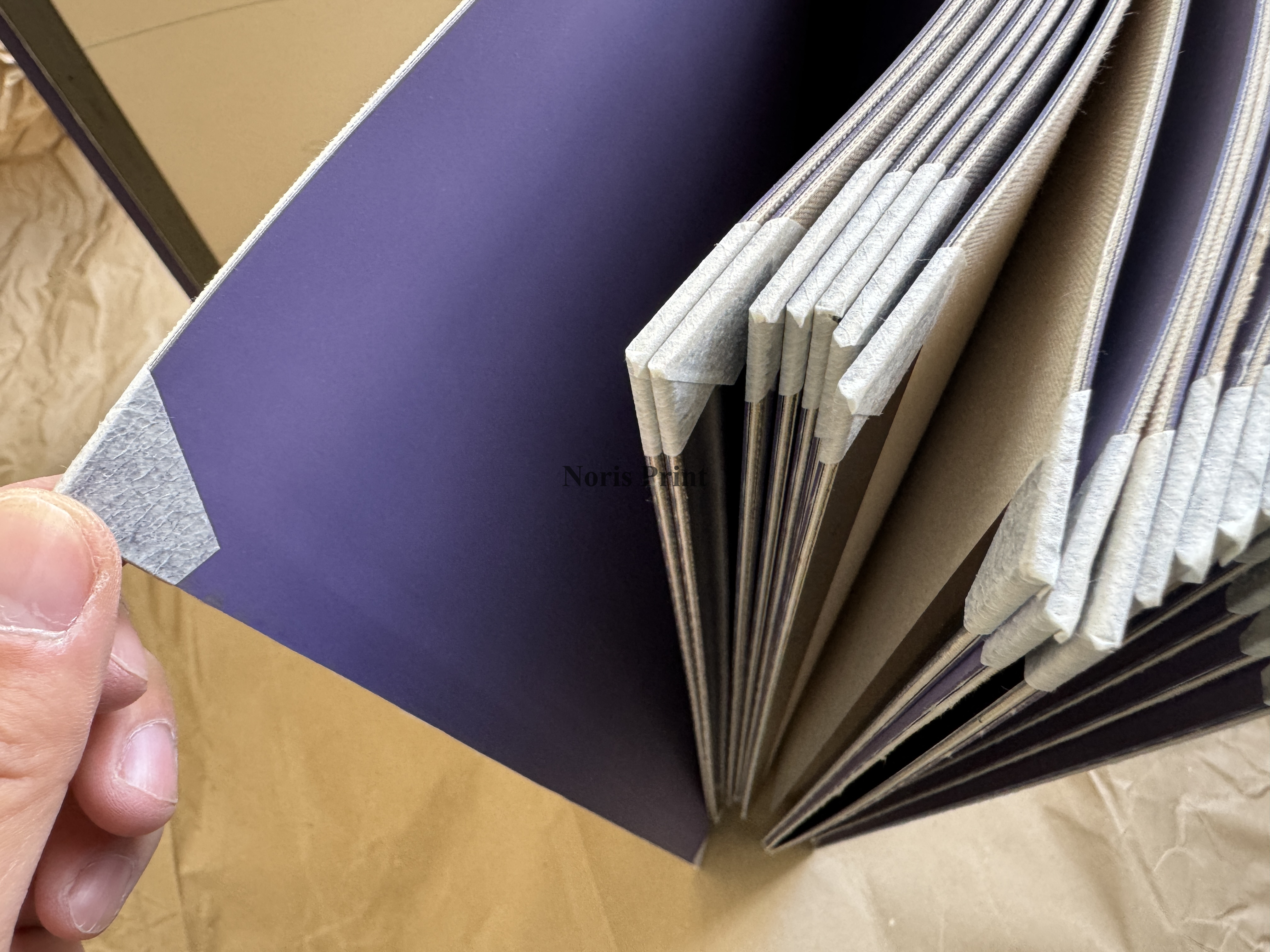

Offset printing blankets are critical components in the offset printing process, acting as the intermediary surface that transfers ink from the printing plate to the substrate (usually paper or other materials). The construction of an offset printing blanket is designed to ensure durability, consistent ink transfer, and resistance to the stresses of the printing process. Below is a detailed breakdown of the typical construction of an offset printing blanket:

1. Surface Layer (Top Layer)

• Material: The surface layer is usually made of synthetic rubber, such as nitrile rubber (NBR) or other elastomers.

• Function: This layer directly contacts the printing plate and the substrate, transferring the ink. It must be smooth, durable, and resistant to wear, chemicals, and abrasion.

• Properties:

• High ink receptivity and release.

• Resistance to solvents, oils, and cleaning agents.

• Good elasticity to maintain consistent contact with the plate and substrate.

2. Compression Layer (Middle Layer)

• Material: This layer is typically made of a compressible foam or rubber material.

• Function: The compression layer absorbs the pressure exerted during the printing process, ensuring even ink transfer and reducing the risk of misalignment or distortion.

• Properties:

• High compressibility to accommodate variations in substrate thickness.

• Resilience to recover quickly after compression.

• Resistance to heat and pressure to maintain performance over time.

3. Fabric Layer (Base Layer)

• Material: The base layer consists of multiple plies of fabric, usually made from cotton, polyester, or a blend of both.

• Function: The fabric layer provides structural stability and strength to the blanket, preventing stretching or tearing during installation and operation.

• Properties:

• High tensile strength to withstand the tension applied during installation.

• Dimensional stability to maintain the blanket's shape and size.

• Resistance to moisture and chemicals to prevent degradation.

4. Adhesive Layer

• Material: A layer of adhesive is applied to bond the fabric layers together and to the rubber layers.

• Function: The adhesive ensures the layers remain securely bonded during the printing process, even under high pressure and temperature.

• Properties:

• Strong bonding strength to prevent delamination.

• Resistance to heat and chemicals to maintain integrity.

5. Backing Layer (Optional)

• Material: Some blankets include a backing layer made of fabric or a special coating.

• Function: The backing layer provides additional protection and stability, especially for blankets used in high-speed or heavy-duty printing.

• Properties:

• Enhanced durability and resistance to wear.

• Improved grip on the cylinder to prevent slippage.

Key Features of Offset Printing Blankets

1. Thickness: Standard thickness ranges from 1.5 mm to 2.0 mm, depending on the application and press requirements.

2. Surface Finish: The surface may be smooth or textured, depending on the desired print quality and ink transfer characteristics.

3. Compressibility: The compressibility of the blanket is carefully engineered to ensure consistent pressure and ink transfer across the entire printing area.

4. Heat Resistance: The materials used must withstand the heat generated during high-speed printing and drying processes.

5. Chemical Resistance: The blanket must resist degradation from inks, solvents, and cleaning agents.

Types of Offset Printing Blankets

1. Conventional Blankets:

• Made with a compressible layer for general-purpose printing.

• Suitable for a wide range of substrates and printing conditions.

2. UV Blankets:

• Designed specifically for UV printing processes.

• Resistant to UV inks and curing processes.

3. Air Cushion Blankets:

• Feature a microporous compressible layer for improved pressure distribution.

• Ideal for high-speed printing and uneven substrates.

4. Metal Back Blankets:

• Include a metal backing for enhanced stability and durability.

• Used in high-precision printing applications.

Manufacturing Process

1. Material Preparation: The rubber, fabric, and adhesive materials are prepared and treated to ensure uniformity and quality.

2. Layer Assembly: The layers are assembled in a specific sequence, with adhesive applied between each layer.

3. Vulcanization: The assembled blanket is vulcanized (heated under pressure) to bond the layers together and create a durable, cohesive structure.

4. Cutting and Finishing: The blanket is cut to the required size and shape, and the edges are finished to prevent fraying or delamination.

5. Quality Control: The finished blanket undergoes rigorous testing to ensure it meets performance standards for thickness, compressibility, and durability.

By understanding the construction and properties of offset printing blankets, printers can select the right blanket for their specific needs and ensure optimal performance and longevity in their printing operations.
